NAP 350
Our highly dynamic monoblock power amplifier
A benchmark amplifier; a pair of NAP 350s offer precise musical performance. Designed to effortlessly drive large and demanding loudspeakers, capturing the true dynamics of music.

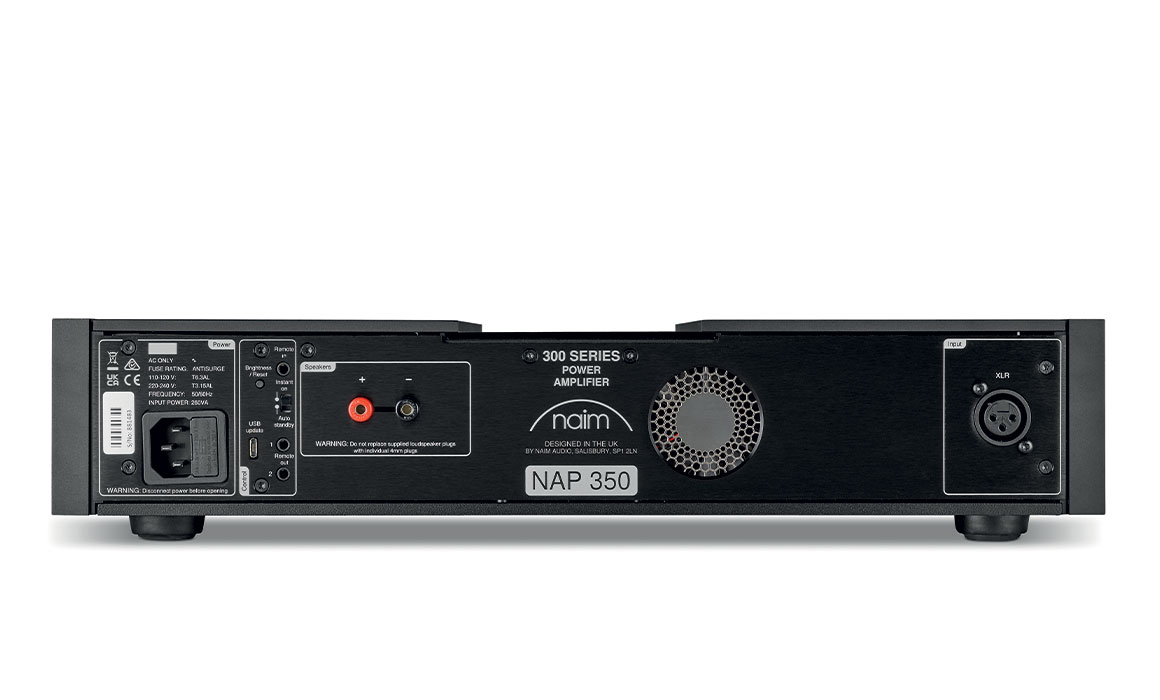

The NAP 350 is a pure class-AB linear amplifier, running from fully regulated DR power supplies; producing 175W into 8 ohms and 345W into 4 ohms. It can deliver peak power of up to 1.7kW to drive impedance dips of complex speaker crossover networks. The input is via a balanced XLR socket, facilitating industry-wide compatibility.
Under the guidance of our Technical Director, our engineers have developed innovative electronic circuits to give the New Classic products excellent audio performance. The NAP 350 has a new high-current output stage that uses matched pairs of Statement NA009 custom power transistors. Combined with our acclaimed DR technology, which guarantees a stable and low-noise power supply, the NAP 350 delivers high power with precision and speed.
NAP 350 combines perfectly with the NSS 333 streamer and the NAC 332 preamplifier.
Naim products are designed to be both contemporary and timeless. Our creations forgo any unnecessary embellishment that would detract from the performance and sound quality.

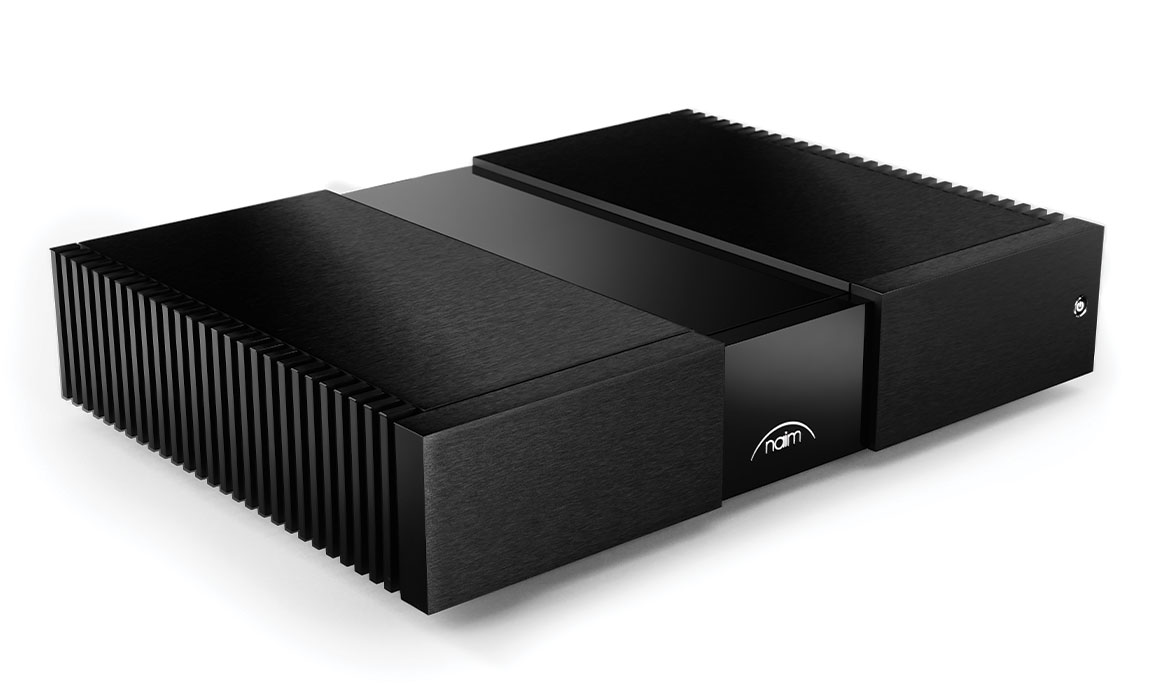

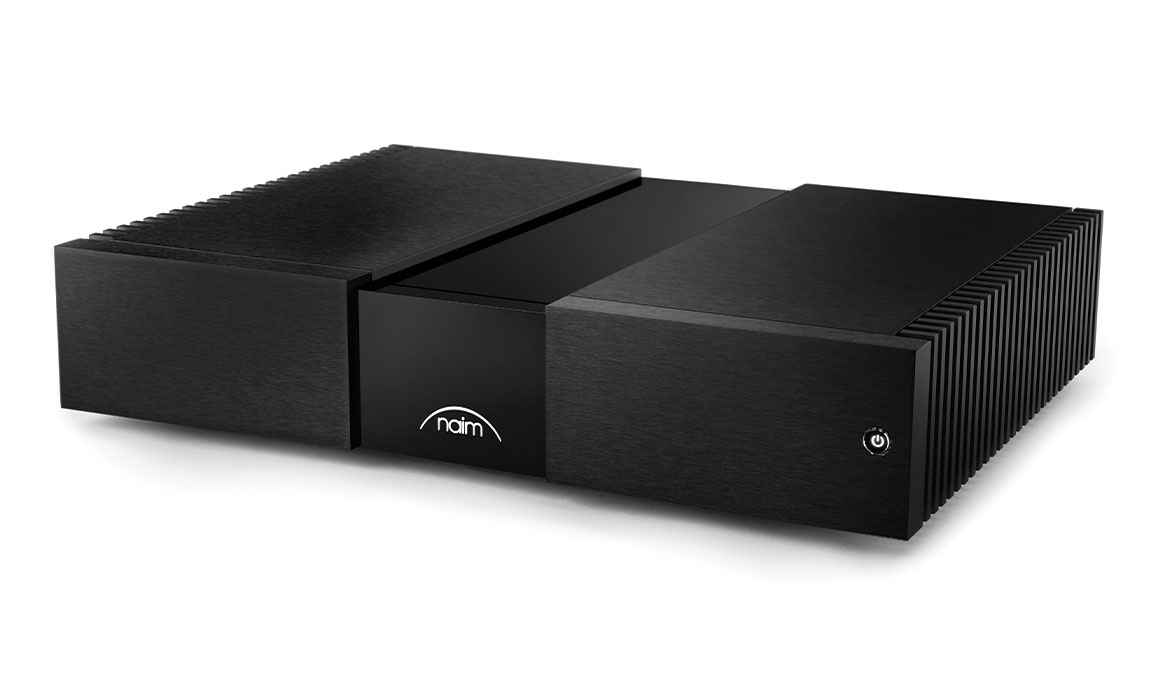

The NAP 350 combines a sleek design and premium materials such as highly thermally conductive aluminium alloy heatsinks.
Our founder, Julian Vereker, immediately understood the many benefits of aluminium as a material for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, unstable temperatures, unwanted vibrations, etc.
The Naim Classic range maximises this highly technical and durable approach, with aluminium housings rivalled only by Statement, our flagship product. Naim chose a superior-quality aluminium, which optimally combines thermal and microphonic properties. The front panels are treated with solid 20mm-thick aluminium billets; heat sinks frame the side panels and 5mm plates cover the top and bottom surfaces of the products. The aluminium is brushed, sandblasted and anodised to guarantee unalterable beauty throughout the product's life. The New Classic range can be immediately distinguished with one look and one touch, before the first note of music even plays.
Discover the new interface available for the 200 & 300 Series to help with the set-up of your products. Find high-quality tutorials to optimise the sound settings, best practice advice and tips.
Manuals & Downloads
Product Specification
| Attribute Value | |
|---|---|
| Product Type |
Amplifier |
| Damping factor into 8 |
36 |
| Signal to noise ratio ref 100W 8 A-weighted |
ref 175W 8Ω A-weighted: 114dB |
| Signal to noise ratio ref 1W 8 A-weighted |
91dB |
| Input signal for clipping |
1.33V RMS |
| Peak current into 1 (1kHz 1ms) |
+/-42 amps peak (1.7kW peak power) |
| Burst power 2 |
610 Watts 2Ω @1% THD+N |
| Attribute Value | |
|---|---|
| Analogue Input |
1 x 47kΩ True balanced via XLR |
| Attribute Value | |
|---|---|
| Crosstalk |
NA (mono) |
| THD + N |
0.006% |
| Frequency Response |
-3dB @ 1.4Hz to 100kHz |
| Gain |
+29dB |
| Attribute Value | |
|---|---|
| Weight |
36.38lbs (16.5kg) |
| Dimensions (HxWxD) |
35/8x17x121/2" (9.15x43.2x31.75cm) |
| Attribute Value | |
|---|---|
| Mains Supply |
115V or 230V, 50/60Hz |
| Power Consumption |
Passive consumption: 24W (idle) Standby consumption: <0.5W |
| Attribute Value | |
|---|---|
| Power Output |
175 Watts 8Ω @0.1% THD+N (195W @1%) |
